75kva Juice Box
Temporary power is the first consideration for any construction site. Before there are electric rooms, how do you power the machinery and tools required to build them?
The 75 kVA Juice Box is our response to this problem in the most compact, maneuverable, and ruggedly durable frame we could imagine.
Exceptionally mobile, it easily passes through standard single doorways, and the industry-exclusive zero turn radius casters allow you to easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. The all steel powder coated frame is designed to withstand harsh locations and frequent relocation.
Input Power
Customer supplied 480v 3Ø
Output Power
(2) 3Ø 480 Volt, 50 Amp, CS8169
(8) 3Ø 120/208 Volt, 50 Amp, CS6369
(1) 3Ø 120/208 Volt, 30 Amp, L14-30R
(1) 3Ø 120/208 Volt, 30 Amp, L6-30R
(4) 1Ø 120 Volt, 20 Amp, L5-20 GFCI
Enclosure Rating
NEMA 3R
Dimensions
29.438" W x 60.688" D x 64.375" H
(including casters & frame)
Weight
825 lbs
Frame
Powder Coated 3/16” solid steel
Mover.
The Juice Box is designed to be crane lifted, forklifted, turn on a dime, and easily fit through a standard doorway.
Shaker.

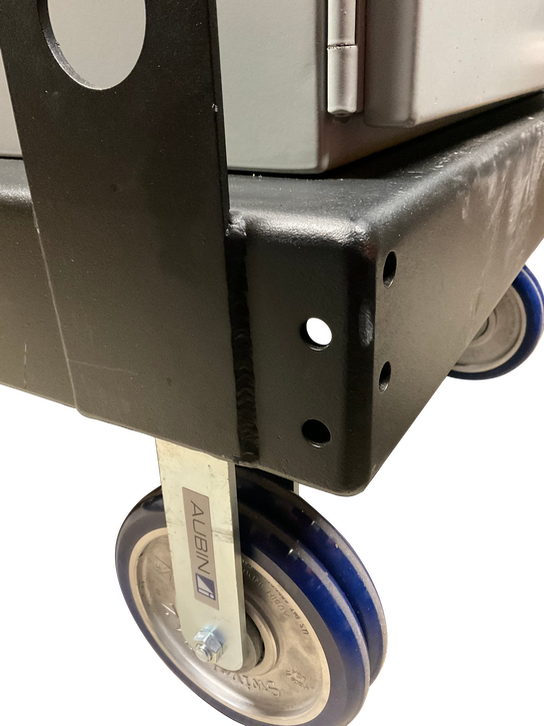

The world’s most state-of-the-art 360° swivel casters allow for smooth, precision movement and 50-70% reduction in push/pull forces making it the most compact and maneuverable product of its kind.
Boundary Breaker.
Ruggedly constructed from solid 3/16” steel and powder coated for maximum protection against elements, corrosion, and tough jobsite conditions. Our quality NEMA 3R enclosures are resistant to rain, ice, and snow.
PRODUCT FEATURES
High Capacity
3 Phase, 75KVA; 480 Volt Hardwire Connection
Versatile
Built-in provisions and durability for crane and forklifting
Durable
Powder Coated 3/16” solid steel construction
Weatherproof
Quality NEMA 3R enclosures resistant to rain, ice, and snow
Compact
Sized to fit through doorways, on manlifts, or other small areas
Reusable
Designed to last through decades of projects!
